Oil Drilling High Hardness Tungsten Carbide Waterjet Nozzle OEM

Brand Name : Xinsheng

Model Number : NS18-7.9(15#)

Place of Origin : SICHUAN CHINA

MOQ : 10 Pcs

Price : 10-50USD

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000 Pcs Per Month

Delivery Time : 35 Working Days

Packaging Details : Packed In Paper Box

Material : 100% Virgin Tungsten Carbide

Size : OEM Accepted

Application : Oil Drilling

Properties : High Hardness

Dimenstion : Customization Acceptable

Highlight : Tungsten Carbide Waterjet Nozzle, Oil Drilling Carbide Waterjet Nozzle, Cemented Carbide Drill Bit Nozzle

Contact Now

Oil Drilling High Hardness Tungsten Carbide Waterjet Nozzle
Tungsten carbide nozzles are an important tool used in many industries today. The combination of tungsten carbide and cobalt makes the nozzle highly durable and resistant to wear and tear, as well as corrosion. This type of nozzle is also able to withstand extreme temperatures, making it suitable for a variety of industrial applications. Tungsten carbide nozzles are used for the production of oil and gas, the welding of metals, and the application of sealants, adhesives and other liquids. They are also ideal for a variety of industrial applications due to their excellent strength, corrosion resistance and heat resistance.
Materials and Properties
Grade ISO Grade Chemical Composition Physical Properties Applications
WC% CO% Density g/cm3(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Grain Size(μ m)
YG6 K20 94 6 14.85-15.00 90.5-92 1800 1.2-1.6 Carbide burr.
YG6X K15 94 6 14.80-15.00 91.7-93 1600 ＜1.0 High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons.
YG8 K30 92 8 14.62-14.82 89.5-91 1900 1.2-1.6 Wire drawing die and non-standard structure and mechanical component and valve ball.
YG9 K40 91 9 14.40-14.60 89-90 1850 1.2-1.6 Flow sleeves, bushings, rings.
YG9C K40 91 9 14.50-14.90 87.5-89 1815 1.2-1.6 Nozzles, for the petroleum.
YG11 K40 89 11 14.35 89 3200 1.6-2.0 Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry.
YG11C - 89 11 14.20-14.40 87.5-89 2200 1.6-2.4 Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries.
YG13 - 87 13 14.10-14.30 87.5-89 2500 1.6-2.0 Sleeves and bushings.
YG13C - 87 13 14.05-14.25 85.8-87.3 2550 2.4-4.0 Alloy teeth and brazing bits.

Product Features

Precision: Our carbide nozzles offer superior precision compared to other materials. This allows for better control and accuracy when performing delicate tasks.

Cost-effectiveness: Our carbide nozzles offer clients cost-effective solutions. This makes our products attractive to businesses that need to maximize their budgets.

Versatility: Our carbide nozzles are designed to be used in a variety of applications, owing to their superior performance and durability.

Corrosion Resistance: Our carbide nozzles are resistant to corrosion and can withstand harsh environmental conditions.

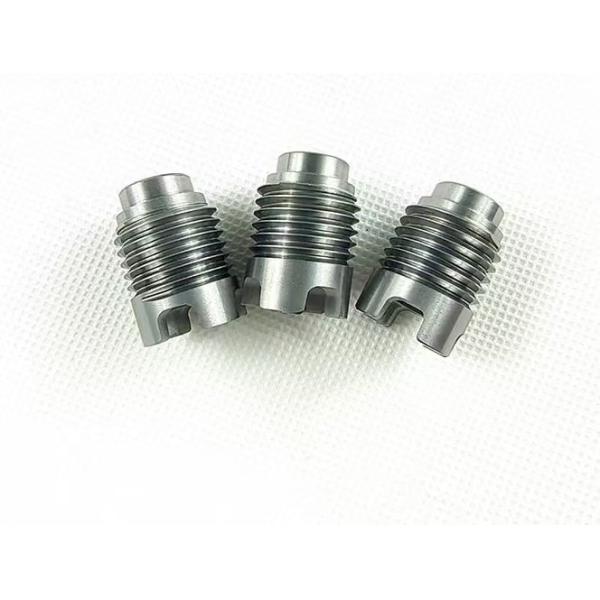

Oil Drilling High Hardness Tungsten Carbide Waterjet Nozzle OEM

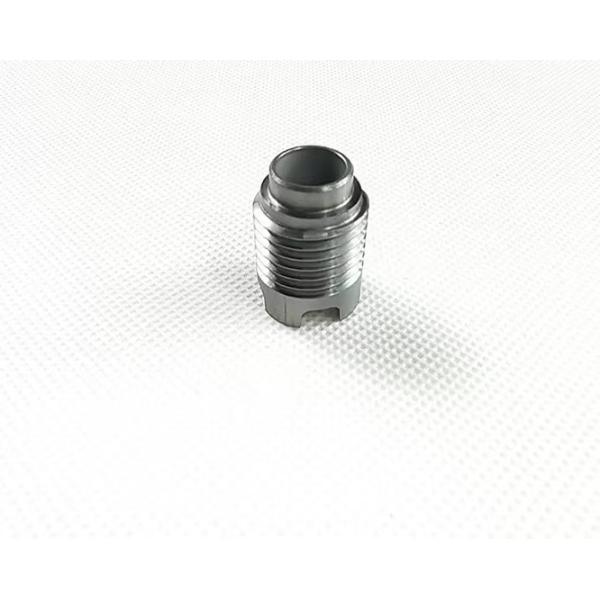

Oil Drilling High Hardness Tungsten Carbide Waterjet Nozzle OEM
